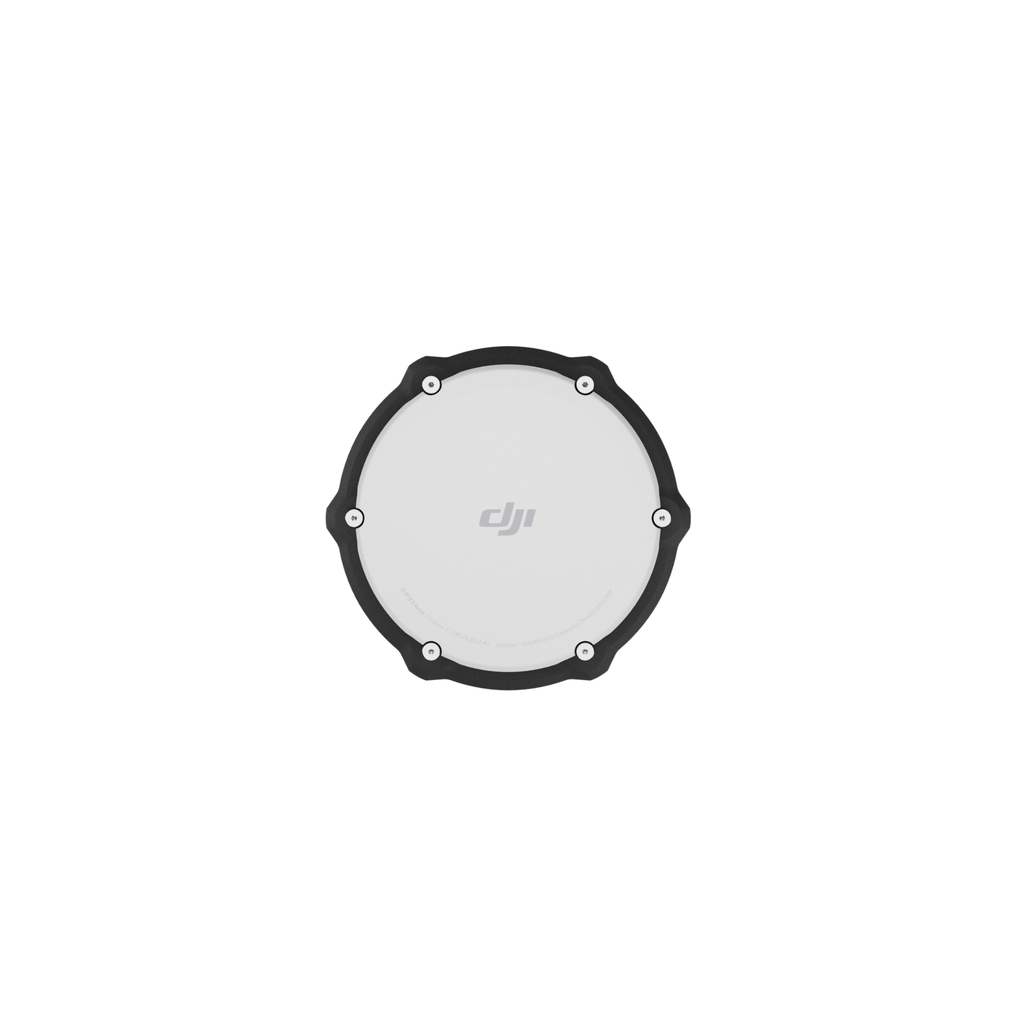

DJI Agras D-RTK 3 Multifunctional Station

DJI D-RTK 3 Multifunctional Station

The DJI D-RTK 3 Multifunctional Station is a versatile, high-precision GNSS positioning solution designed for demanding enterprise drone operations such as surveying, mapping, inspection, and fleet coordination. It combines advanced multi-constellation GNSS support with multiple operating modes and flexible data transmission to elevate both accuracy and operational range.

Key Capabilities

• Multi-Mode Operation:

  • Base Station Mode: Provides centimeter-level RTK positioning corrections to one or multiple drones simultaneously.

  • Relay Station Mode: Extends flight and control range by relaying signals between drones and controllers—ideal for challenging environments with obstructions.

  • Rover Station Mode: Supports high-precision ground point measurement when paired with the DJI Enterprise app and DJI Terra for complete aerial surveying workflows.

• High-Precision GNSS Support: Tracks GPS, BeiDou, Galileo, GLONASS, QZSS, and L-Band signals with industry-leading accuracy — supporting both RTK and Differential modes for superior spatial data.

• Robust Transmission: Uses OcuSync Enterprise video/data transmission with directional antennas, enabling line-of-sight ranges up to 15 km+ depending on regional regulations and mode.

• Compact & Durable: IP67-rated housing with rugged build quality, lightweight form factor (~1.26 kg), and wide —20 °C to 55 °C operating range support field deployment in varied conditions.

• Long Battery Life & Power Options: Integrated LiPo battery with multi-hour runtime depending on mode, plus USB-C and PoE power support for flexible field use.

Seamless Workflow Integration

• Works with the DJI Enterprise app for configuration, Bluetooth control, ground control point measurement, and coordinate management.

• Fully compatible with DJI Terra software for post-processing, map generation, PPK workflows, and projection coordinate export.

Ideal For

• Precision aerial surveying and mapping

• Multi-drone fleet operations

• Crop, field, and asset inspection

• Construction, land assessment, and infrastructure projects

The D-RTK 3 Multifunctional Station sets a new standard for enterprise-grade GNSS positioning, combining precision, versatility, and ease of use to support professional workflows across agriculture, surveying, and beyond.
