Description

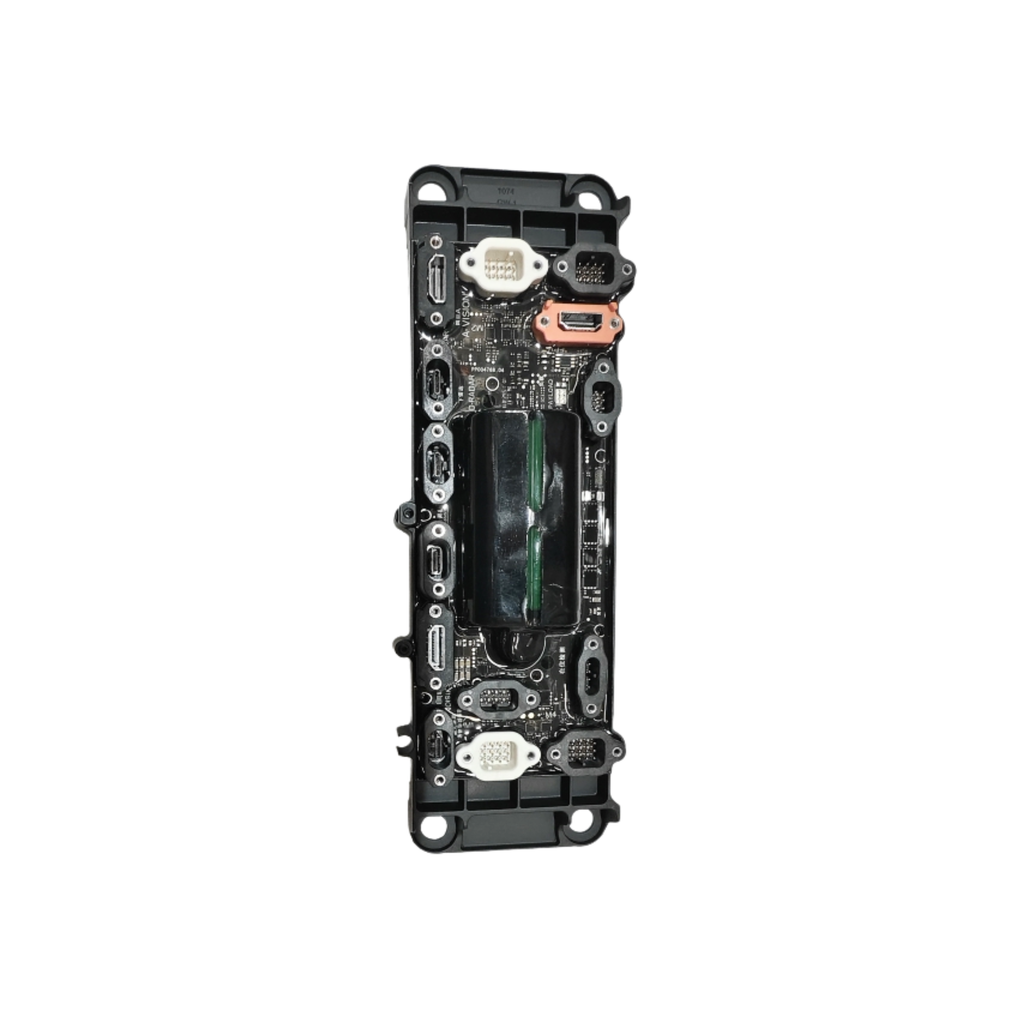

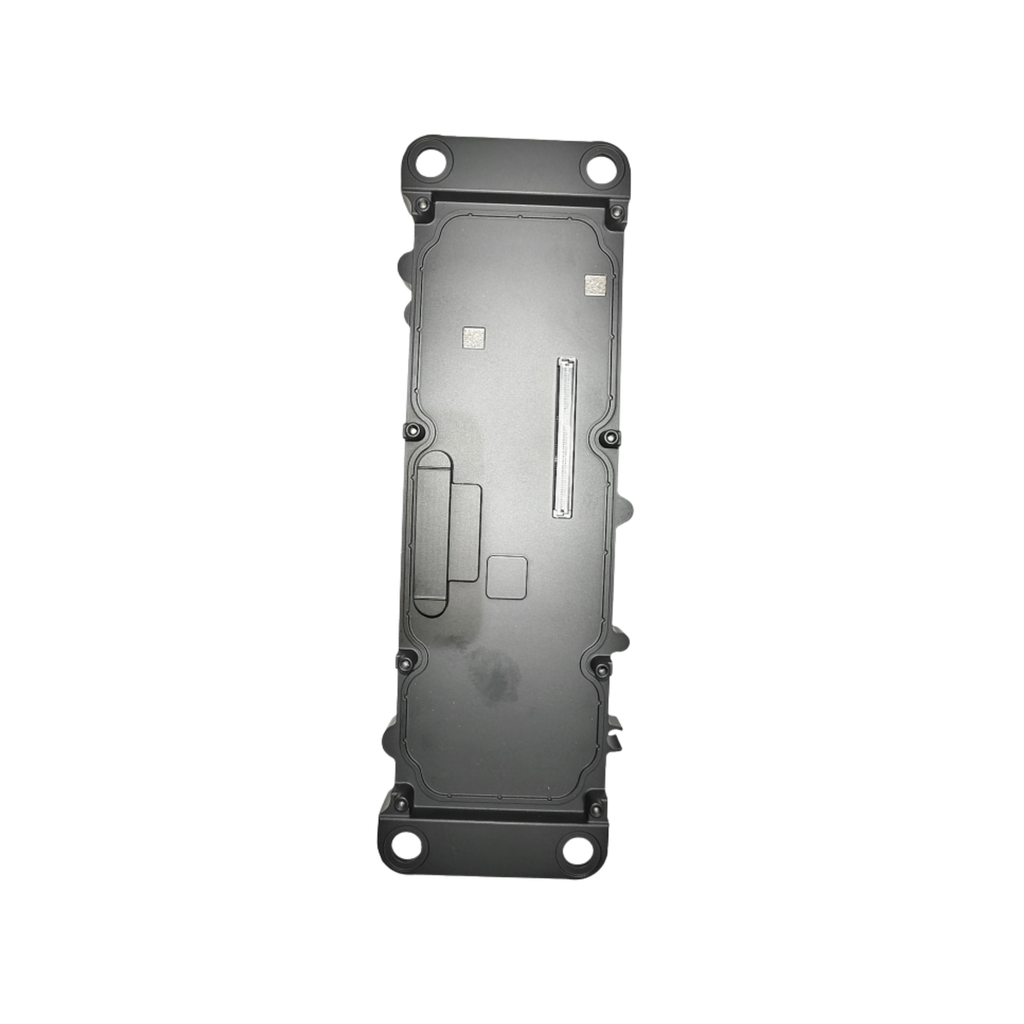

DJI Agras T100 Cable Distribution Board Module is available from Talos Drones as a replacement module. Its labeled connections bring together the arm signals, sensing modules, FPV camera, payload and battery communication.
Compatible with DJI Agras T100 Sprayer Drone.
SKU: BC.AG.SS001091.01
T100 replacement and connection notes
- Use the T100 port layout, not a T70P diagram. DJI's T100 labels include M1–M4, Laser Radar, Four-Eye A/B, Downward Radar, Upper Radar, FPV and Payload.
- Reinstall the radar-line locking screw identified in DJI's T100 assembly notes.
- DJI's repair strategy replaces this board as a complete module. After reconnecting it, check module communication and aircraft health messages using the T100 test procedure.
Is this the main power distribution board?
No. The cable distribution board and power distribution board are separate T100 modules. Match the listed SKU to the board being replaced.
Service scope: These are module-specific checkpoints, not a connector pinout or complete disassembly manual. Power off the aircraft and remove the flight battery before servicing. Follow the full DJI T100 procedure and required post-repair checks.
For identification or replacement assistance, contact Talos Drones with the listed SKU and a photo of the existing board.
